核心参数
| Product data/产品数据 | ||
| 1 | Diaphragm type /驱动方式 | Two blades straight slide movement method /2 枚羽根直进式 |
| 2 | Operating temperature /作动温度 | -20℃~+70℃ |
| 3 | Outside dimension /外形寸法 | L32mm X W14mm X T1.8mm |
| 4 | Storage temperature /保存温度范围 | -40℃~+70℃ |
| 5 | Diameter size /开口口径 | Φ9.0mm |
| 6 | Durability /耐久性 | 300000 times /300000 回 |
| Engine /光圈控制式样 | ||
| 7 | Structure /驱动结构 | Moving magnet method /可动磁石型 |
| 8 | Control method /控制方式 | Driving and braking coils /制动线圈控制速度 |
| 9 | Open voltage /驱动电压 | Open:Max. 3.0V (DC) |
| Close:Min. 0.7V (DC) | ||
| 10 | Coil resistance (at.20℃) Drive coil /驱动线圈 | 190 Ω ±10% |
| 线圈式样 Brake coil /制动线圈 | 500 Ω ±10% | |
| 11 | Direction of rotation /转动方向 | Blades opens when in view of meter side,the lever rotates right |
| 从本体端方向正视,CW 转动,光圈打开 OPEN(DRIVE+接电源正,光圈打开 OPEN) | ||
| 12 | Rotation angle /回转角度 | 60°（MAX） |
| 13 | ND filter density /ND 浓度 | ND1.2 (Transmittance 6.31%) (透过率 6.31%) |
| ND1.0 (Transmittance 10%) (透过率 10%) | ||
| ND0.9 (Transmittance 12.5%) (透过率 12.5%) | ||

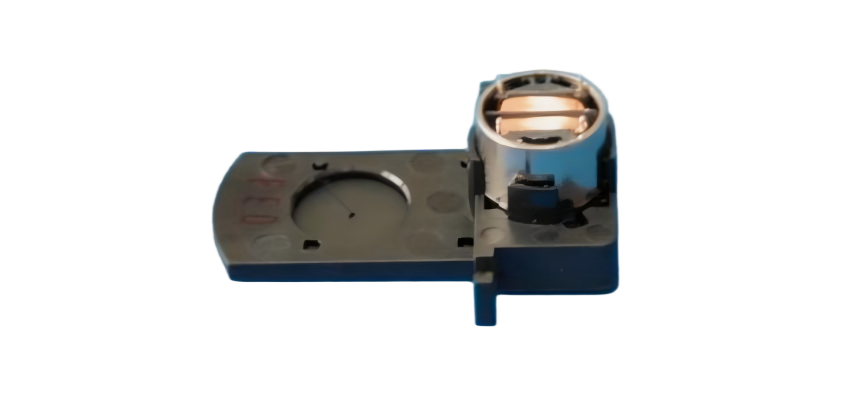

产品结构
应用场景
光学设备
微型精密电机为光学设备提供核心动力，高精度、低抖动、响应迅速，广泛用于镜头对焦、光学调焦、光路切换及精密扫描组件，保障光学成像清晰稳定。
